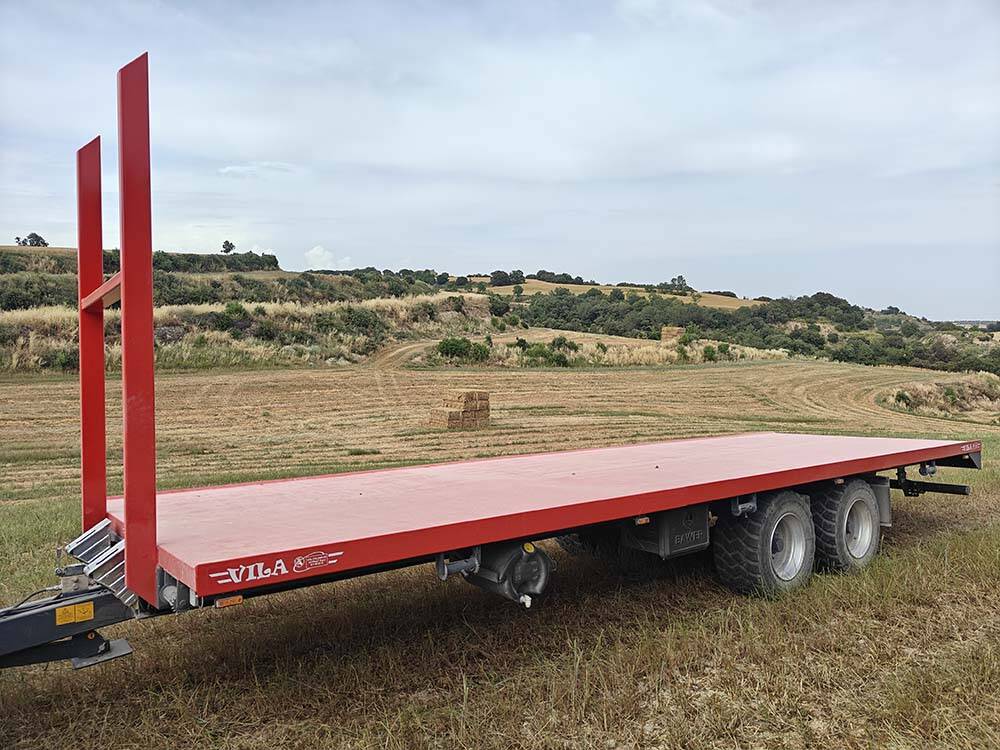

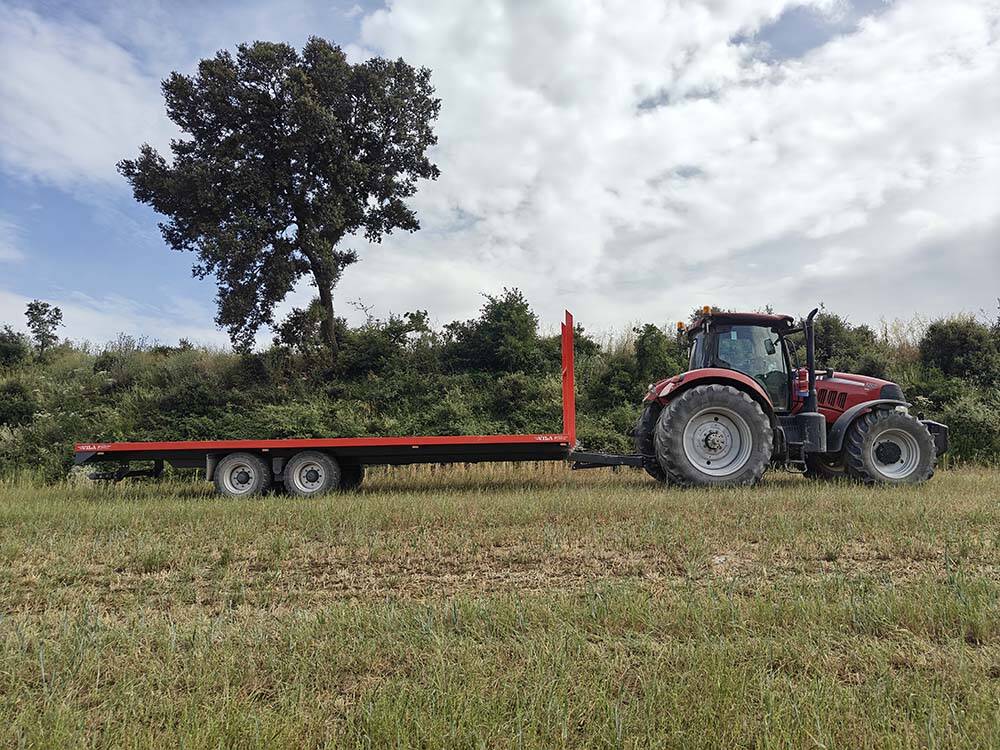

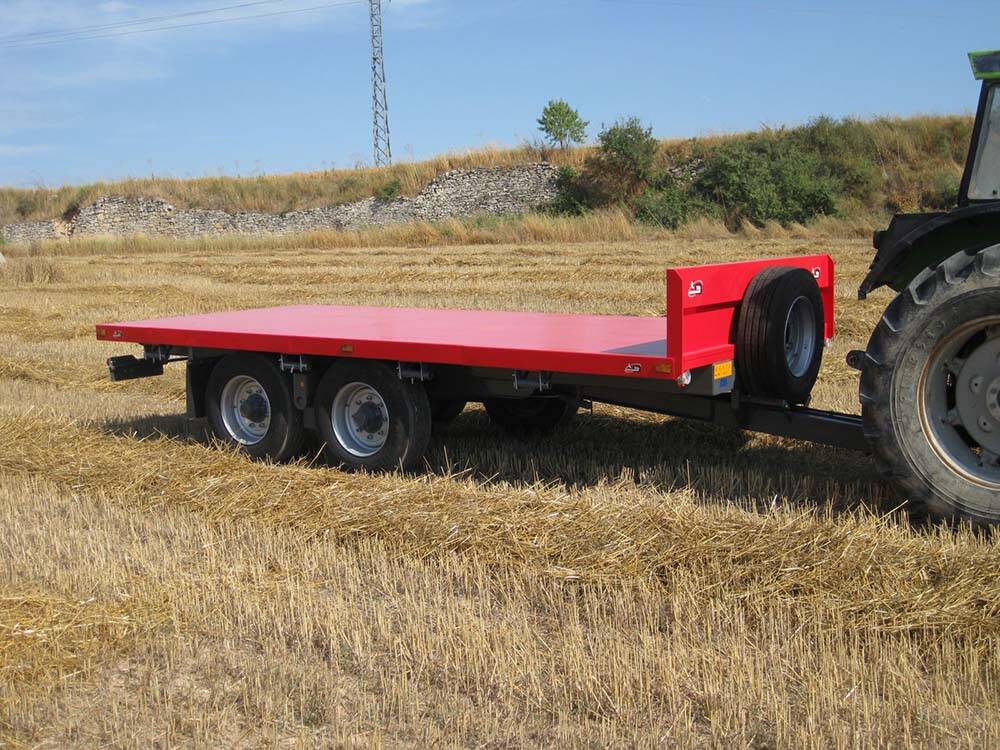

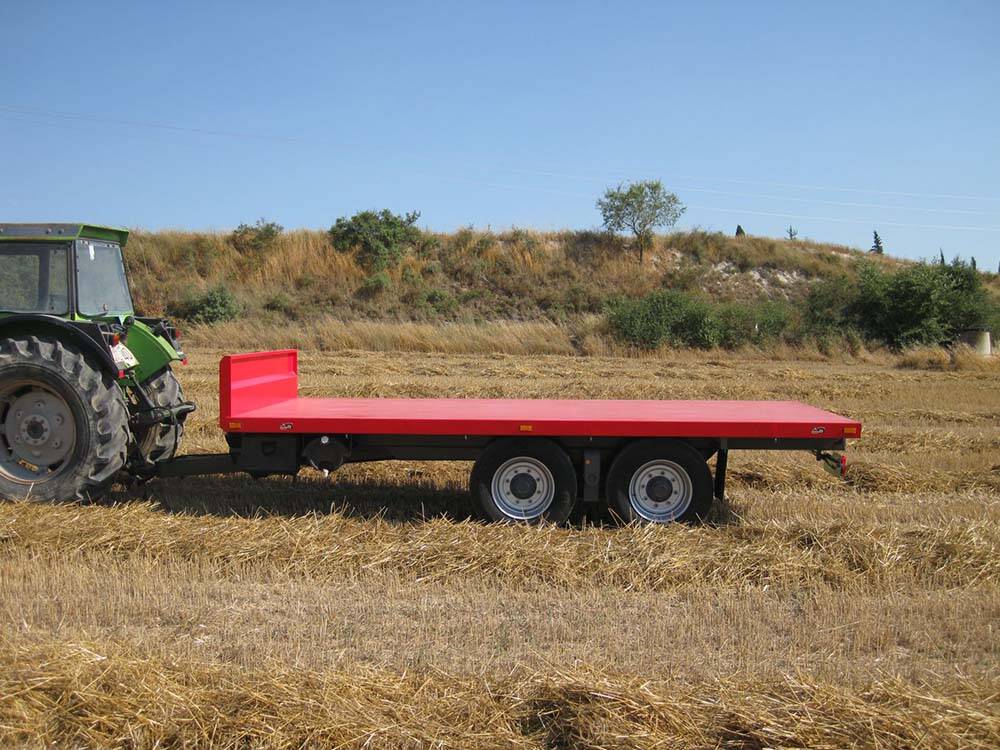

Fixed platforms

Features

Model	Box length	Total length	Broad	Height	PMA 4 wheels	PMA 8 wheels
PGV-6	6.30m	7.65m	2.50m	1.05m	10.100Kg	-
PGV-7	7.30m	8.65m	2.50m	1.05m	12,000 kg	-
PGV-8	8.30m	9.65m	2.50m	1.05m	14,000 kg	18,000 kg
PGV-9	9.30m	10.65m	2.50m	1.05m	16,000 kg	18,000 kg
PGV-10	10.30m	11.65m	2.50m	1.05m	-	18,000 kg

Standard equipment

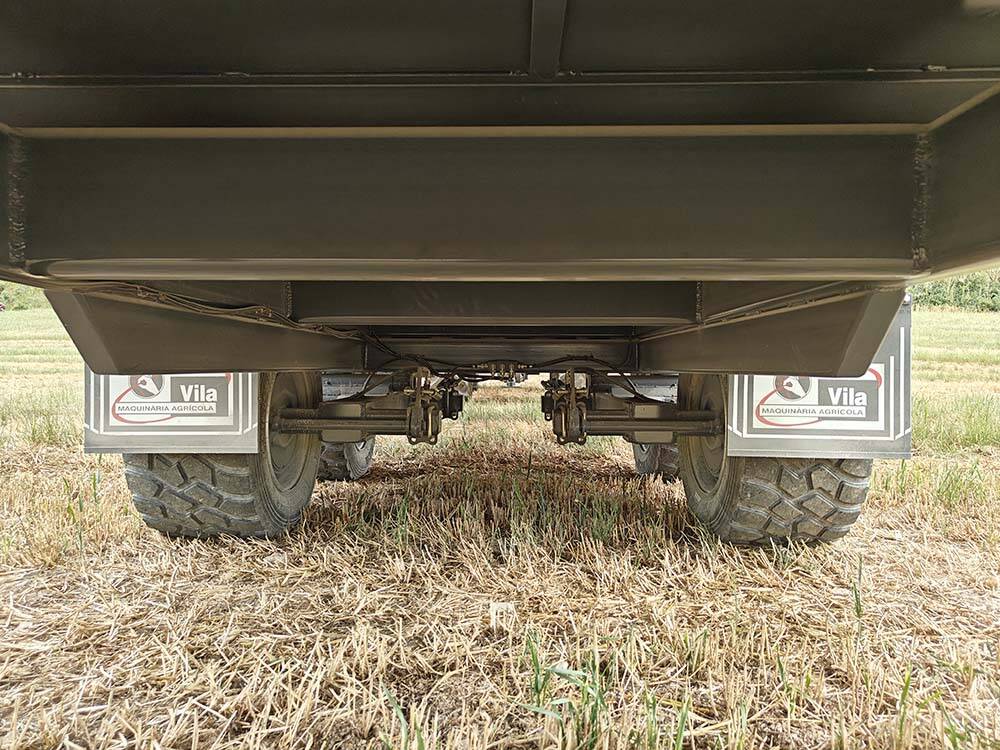

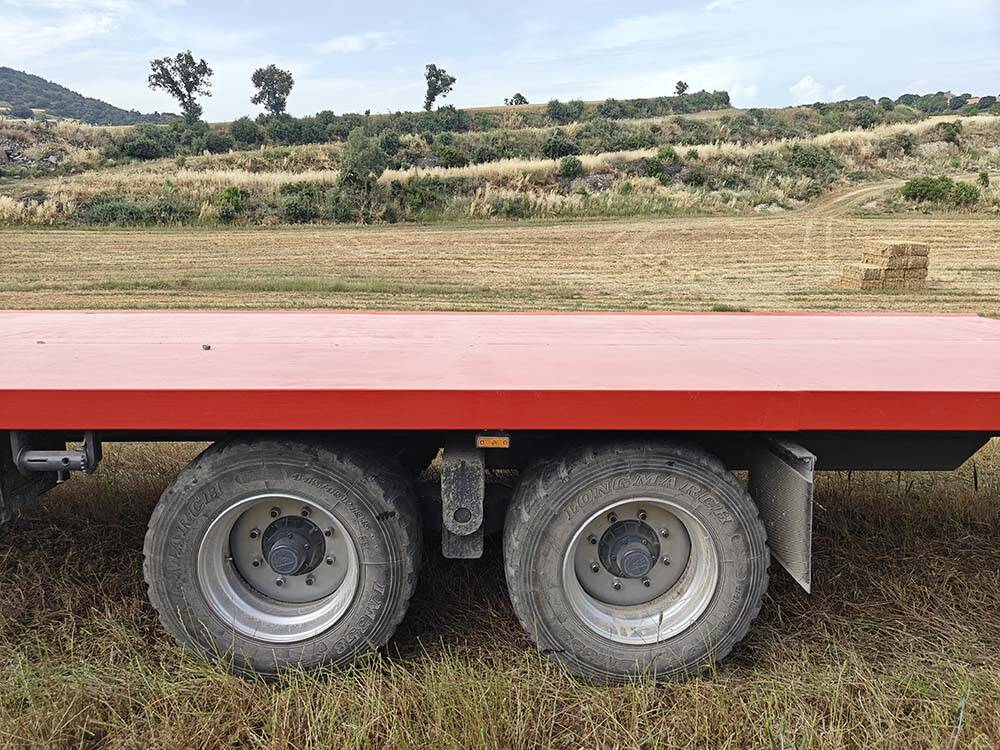

-Tandem rocker axles with brakes on all wheels
-Transport wheels: 285/70-19'5
-Water container and storage drawer

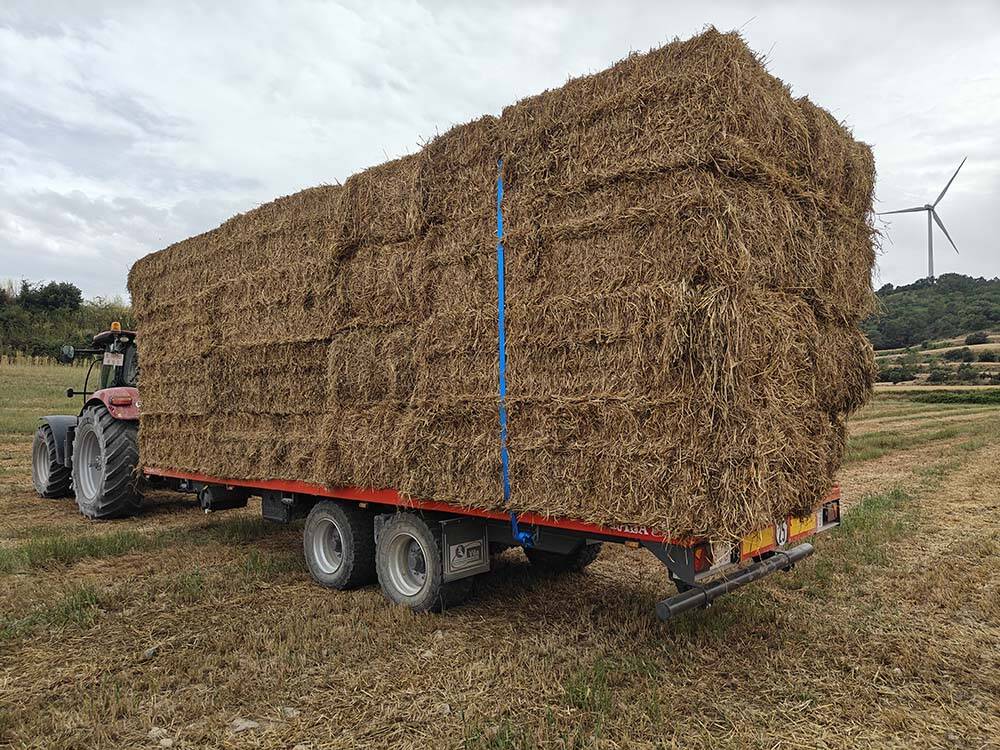

-Winches to secure the load

Optional

-Speed axes: 60km/h
-Air and parking brake equipment
-Highly robust front end

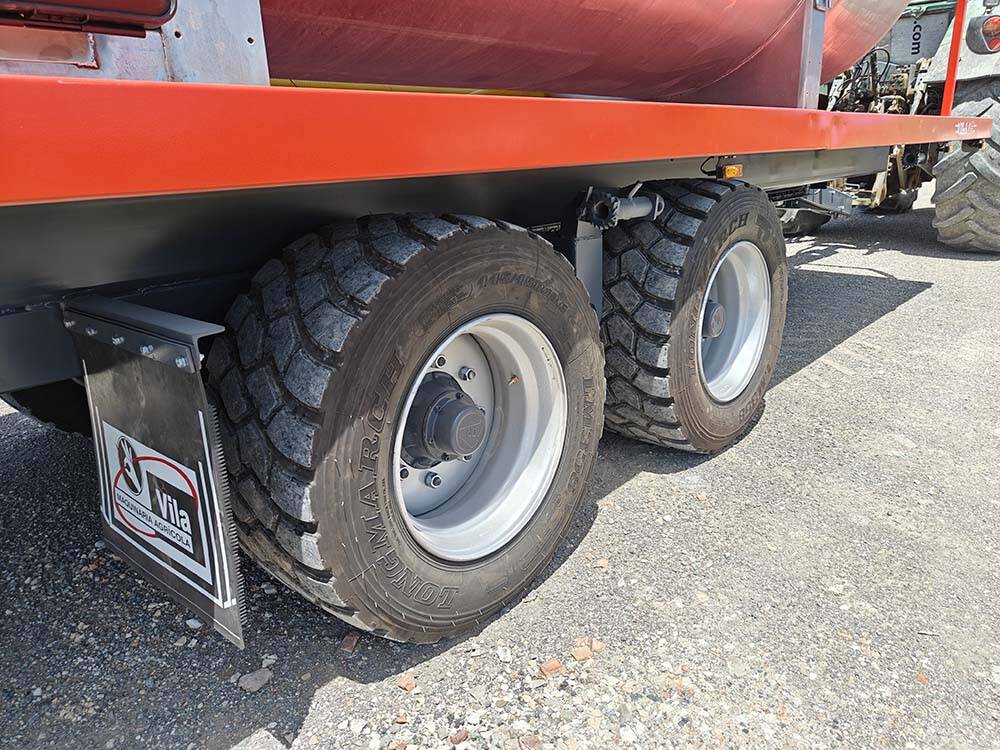

-Transport wheels: 445/45-19'5
-Consult other options
